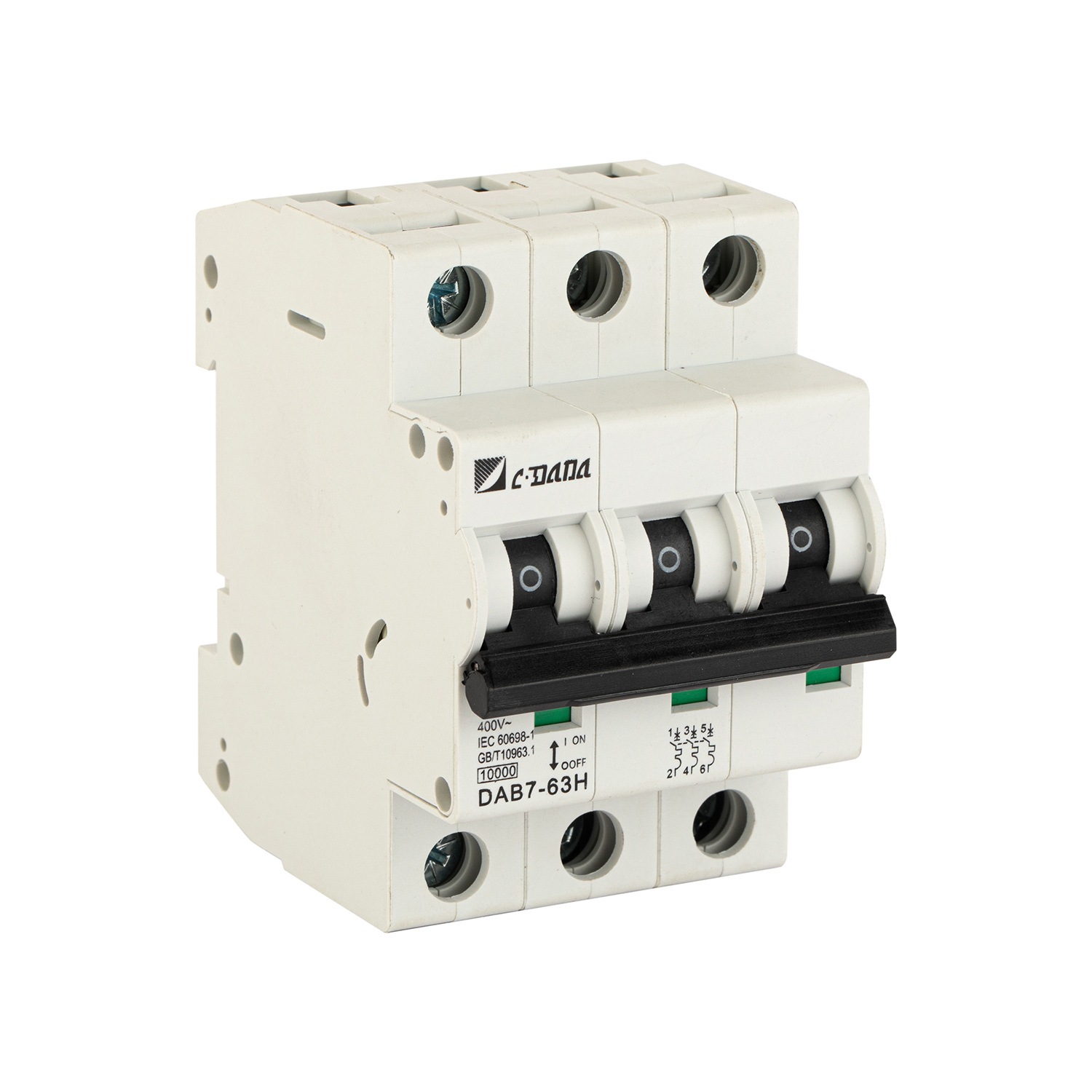

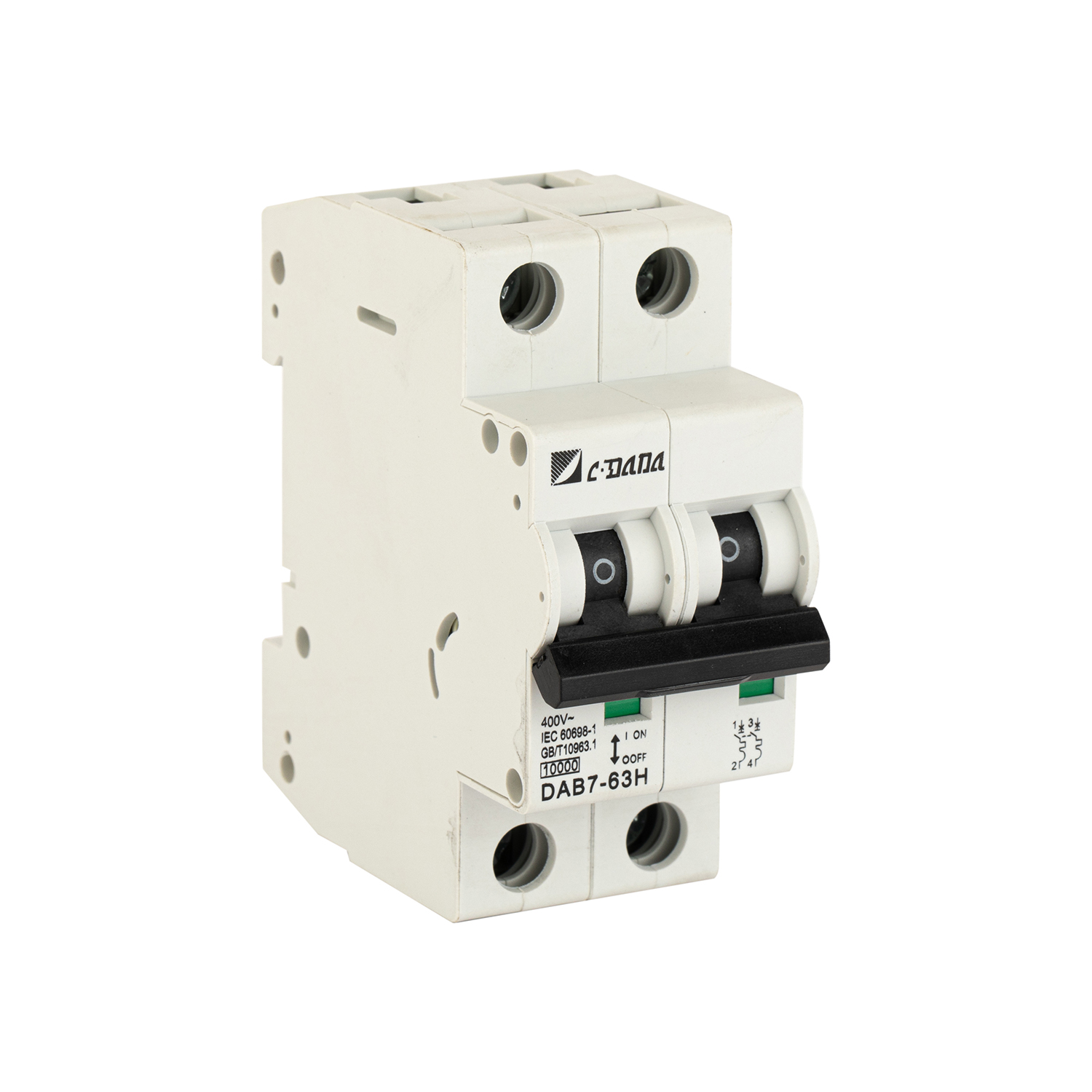

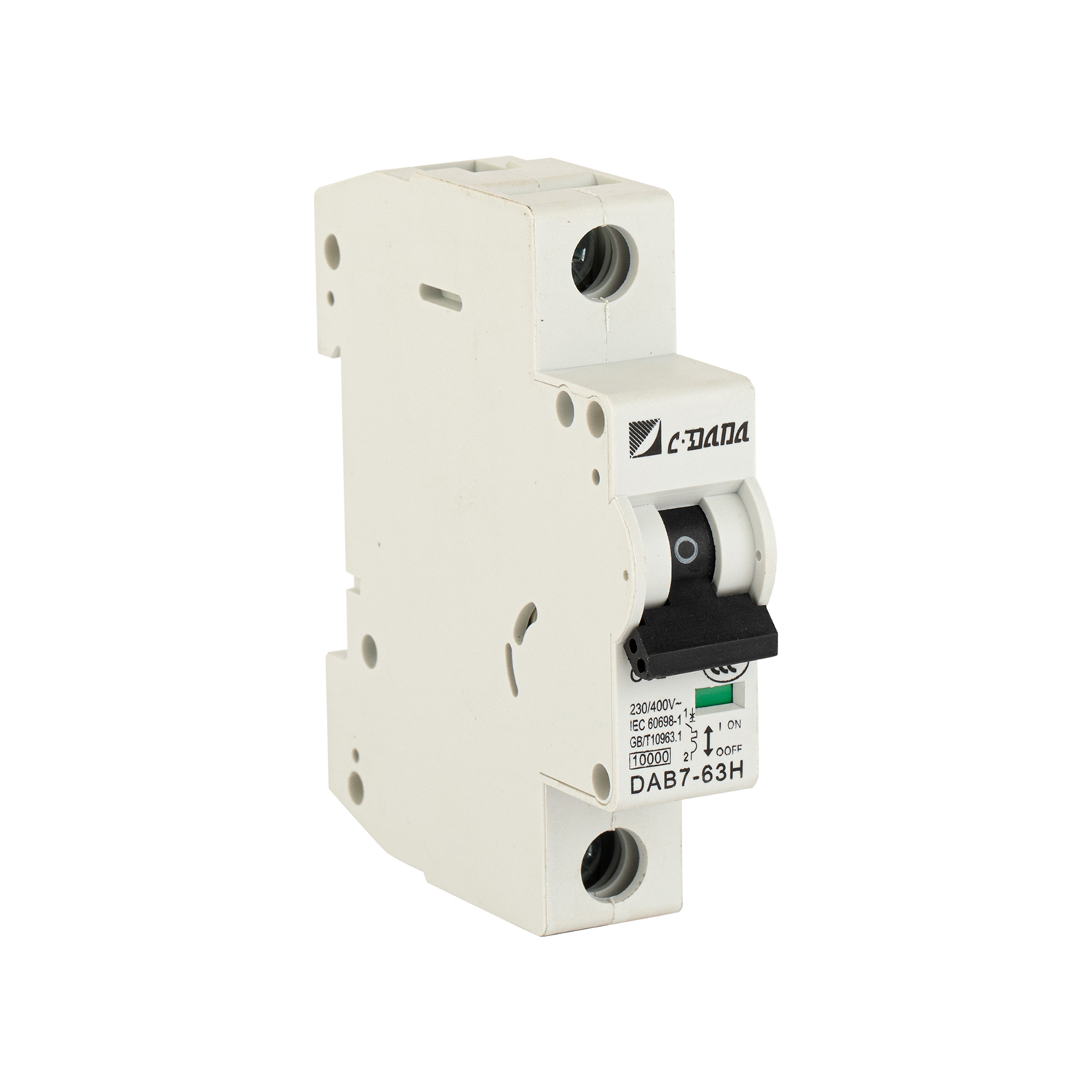

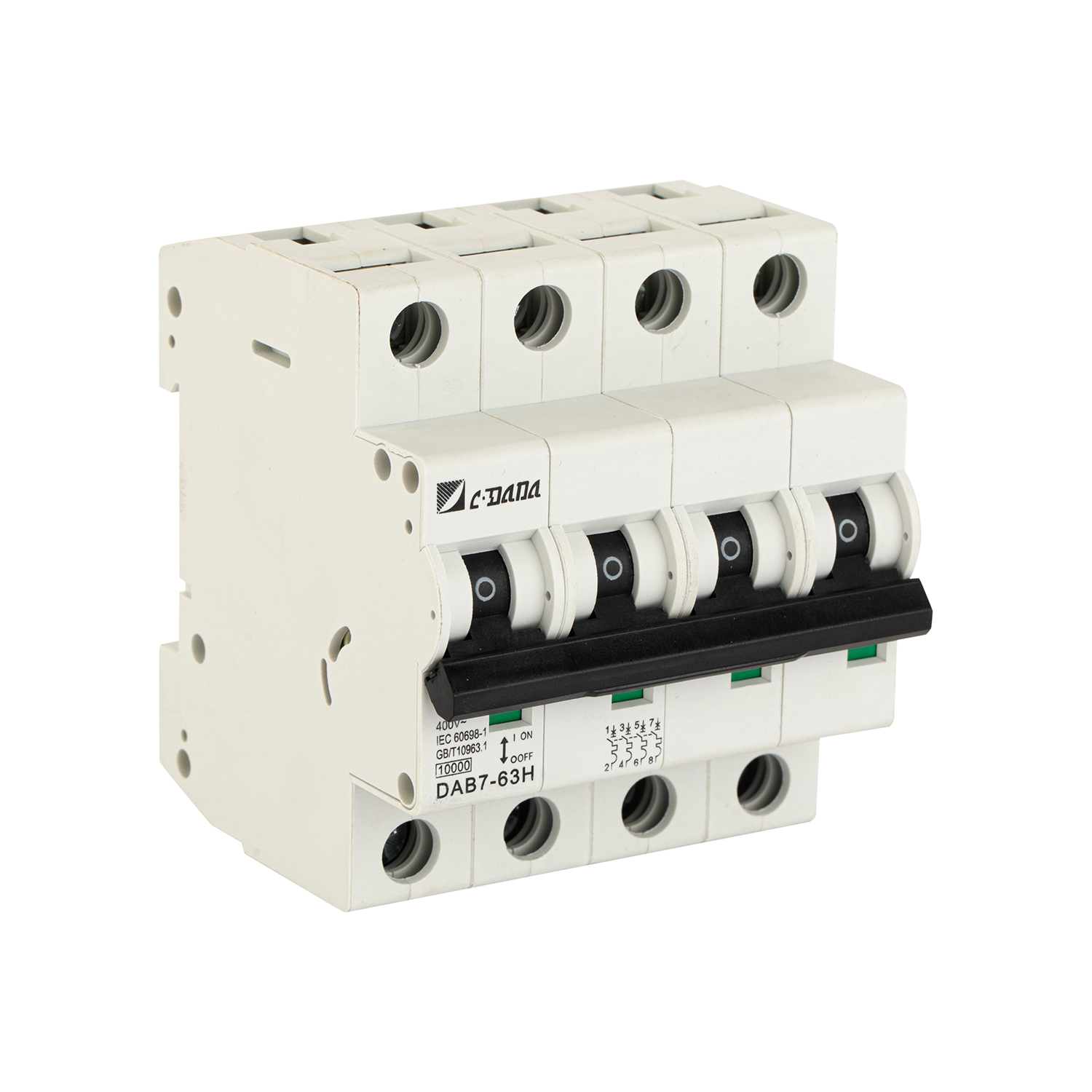

DAB7-100 MCB
The DAB7-100 miniature circuit breaker is developed specifically to GB 10963 and IEC60898 standards. The circuit breakers boast outstanding stability, short circuit protection, overload protection, short opening time, and high breaking capacity index all in one miniature design.
DownloadTechnical parameter of DAB7-100 8kA miniature circuit breaker
Standard of conformity: IEC60898, GB10963
Rated voltage: 230/400V, 50HZ
Rated breaking capacity: 10KA (6-63A), 8KA (80-100A)
Protection grade: IP20
Flame retardant grade: grade2
Endurance (power-driven): no less than 8,000 times of opening
Endurance (manual operation): no less than 20,000times of opening
Mechanical parameters of DAB7-100 8kA miniature circuit breaker
Electric wire: 1~35mm2
Connection mode: There are two kinds of connection, direct connection to the connecting plate, or connected by copper wire
Suitable size for terminal: The thickness of connecting plate is 0.8-2mm, the sectional area of copper conductor is 1-25mm2
Operating temperature: -5~+40℃
Altitude: ≤2000
Relative humidity: +20℃,≤90%; +40℃,≤50%
Class of pollution: 2
Installation method: Using 35mm IEC standard
Installation environment: Avoid obvious shock and vibration
Installation grade: grade II
Guide rail: DIN35guide rail
Installable accessories of DAB7-100 8kA miniature circuit breaker
Auxiliary contact, alarm contact, shunt trip, undervoltage trip, auxiliary contact alarm
| For protection of general power distribution (IEC/EN 60898-1) |  |  |  |  | |||||
| Poles | 1P | 2P | 3P | 4P | |||||
| Electrical performance | |||||||||
| Functions | short circuit protection,overload protection,isolationg,control | ||||||||
| Rated frequency f Hz | 50-60Hz | ||||||||
| Rated working voltage Ue V AC | 230/400 | 400 | |||||||
| Rated current In A | 6,10,16,20,25,32,40,50,63,80,100 | ||||||||
| Rated insulated voltage Ui V | 500 | ||||||||
| Impulse withstand voltage Uimp kV | 4 | ||||||||
| Instantaneous tripping type | DAB7-100N | B/C/D | |||||||
| DAB7-100H | B/C/D | ||||||||
| Rated short circuit Icn(kA) | DAB7-100N | 6 | |||||||
| DAB7-100H | 10 | ||||||||
| Release type | Thermal magnetic type | ||||||||
| Service life(O~C) | Mechanical | Actual value | 20000 | ||||||
| Standard value | 4000 | ||||||||
| Electrical | Actual value | 8000 | |||||||
| Standard value | 4000 | ||||||||
| Connection and installation | |||||||||
| Protectiom degree | IP20 | ||||||||
| Wire mm² | 1~35 | ||||||||
| Working temperature | -5 ～+40℃ | ||||||||
| Resistance to humidity and heat | Class 2 | ||||||||
| Altitude above sea | ≤2000 | ||||||||
| Relative humidity | +20℃ , ≤90% ;+40℃ , ≤50% | ||||||||
| Pollution degree | 2 | ||||||||
| Installation environment | Avoid obvious shock and vibration | ||||||||
| Installation class | Class Ⅱ , Class Ⅲ | ||||||||
| Mounting | DIN35 rail | ||||||||
| Combination with accessories | |||||||||
| Auxiliary contact | Yes | ||||||||
| Alarm contact | Yes | ||||||||
| Shunt release | Yes | ||||||||
| Undervoltage release | Yes | ||||||||
| Auxiliary contact+Alarm contact | Yes | ||||||||
| Dimensions(mm) (WxHxL) | a | 18 | 36 | 54 | 72 | ||||
| b | 80 | 80 | 80 | 80 | |||||
| c | 72 | 72 | 72 | 72 | |||||
The DAB7-100 miniature circuit breaker is developed specifically to GB 10963 and IEC60898 standards.
The circuit breakers boast outstanding stability, short circuit protection, overload protection, short opening time, and high breaking capacity index all in one miniature design.
-
